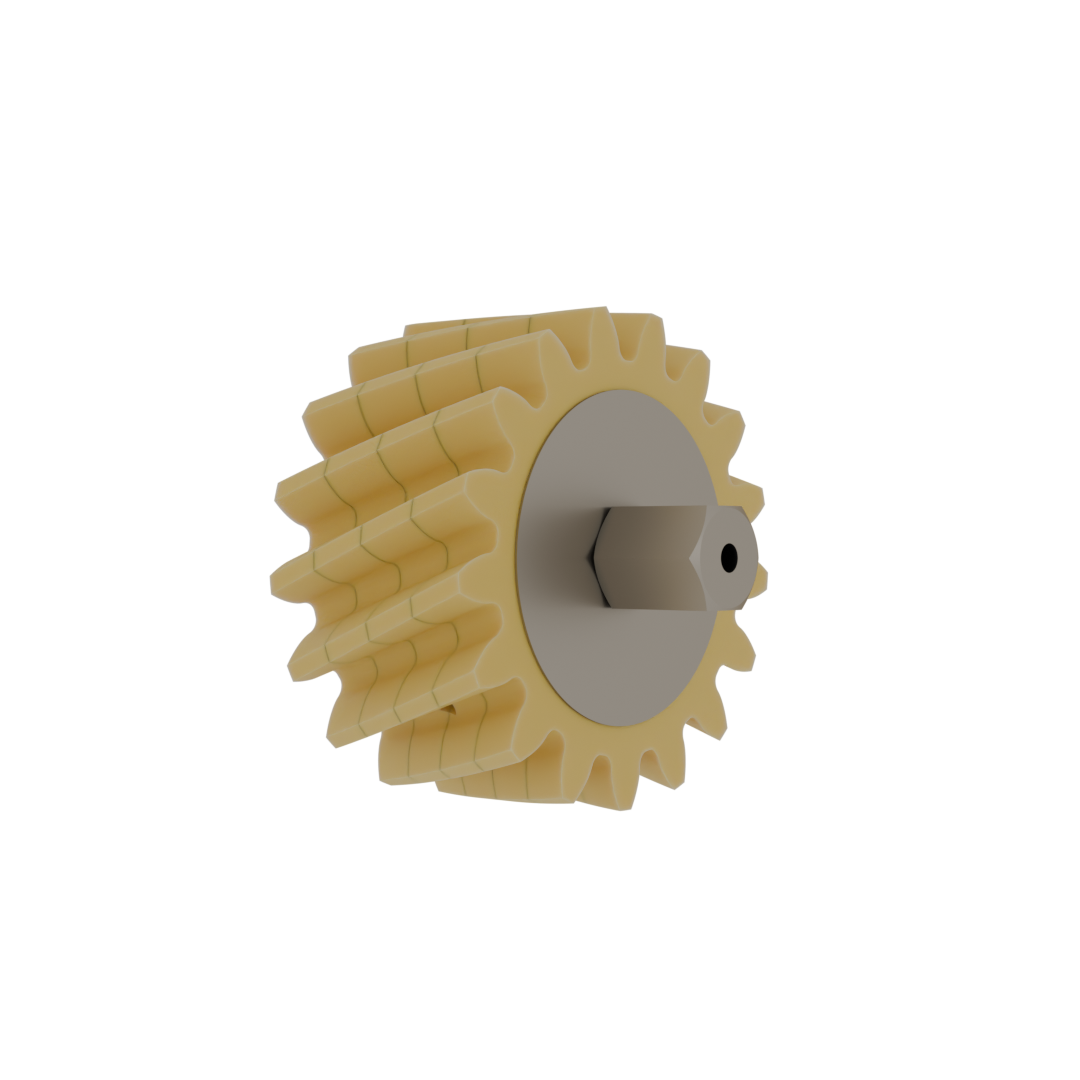

Sets PU-Lubrication Pinion LH with axis, right-angled

Sets PU-Lubrication Pinion LH with axis, right-angled

Sets PU-Lubrication Pinion LH with axis, right-angled

Sets PU-Lubrication Pinion LH with axis, right-angled

Sets PU-Lubrication Pinion LH with axis, right-angled

€67.26*

Prices excl. VAT plus shipping costs

Available in 3 days, delivery time 2-5 days

Module

1.5

2

3

4

5

6

8

10

Product number: 152-021-711

PU-Lubrication Pinion; helical left

incl. sleeve and plain bearing;
with angled axis
toothing after DIN 867
with oil (H1 approval) pre-oiled*

Material:
Pinion: open-cell PU foam;
axis: stainless steel

module	z	b	d1	d2	l	l1	l2	g1	g2	d3	sw	ß	part-no
1,5	24	15	39	36	60,4	30,6	22	G1/8	M8	27	24	19°31‘42‘‘	152-152-411
2	17	20	38	34	61,2	30,6	22	G1/8	M8	27	24	19°31‘42‘‘	152-021-711
3	17	30	57	51	71,2	30,6	22	G1/8	M8	27	24	19°31‘42‘‘	152-031-711
4	17	40	76	68	81,2	30,6	22	G1/8	M8	27	24	19°31‘42‘‘	152-041-711
5	17	50	95	85	116,4	30,6	22	G1/8	M8	60	24	19°31‘42‘‘	152-051-711
6	17	60	114	102	126,4	30,6	22	G1/8	M8	60	24	19°31‘42‘‘	152-061-711
8	17	80	152	136	146,4	30,6	22	G1/8	M8	60	24	19°31‘42‘‘	152-081-711
10	17	100	190	170	166,4	30,6	22	G1/8	M8	100	24	19°31‘42‘‘	152-101-711
12	8	120	120	96	186,4	30,6	22	G1/8	M8	100	24	19°31‘42‘‘	152-120-711
