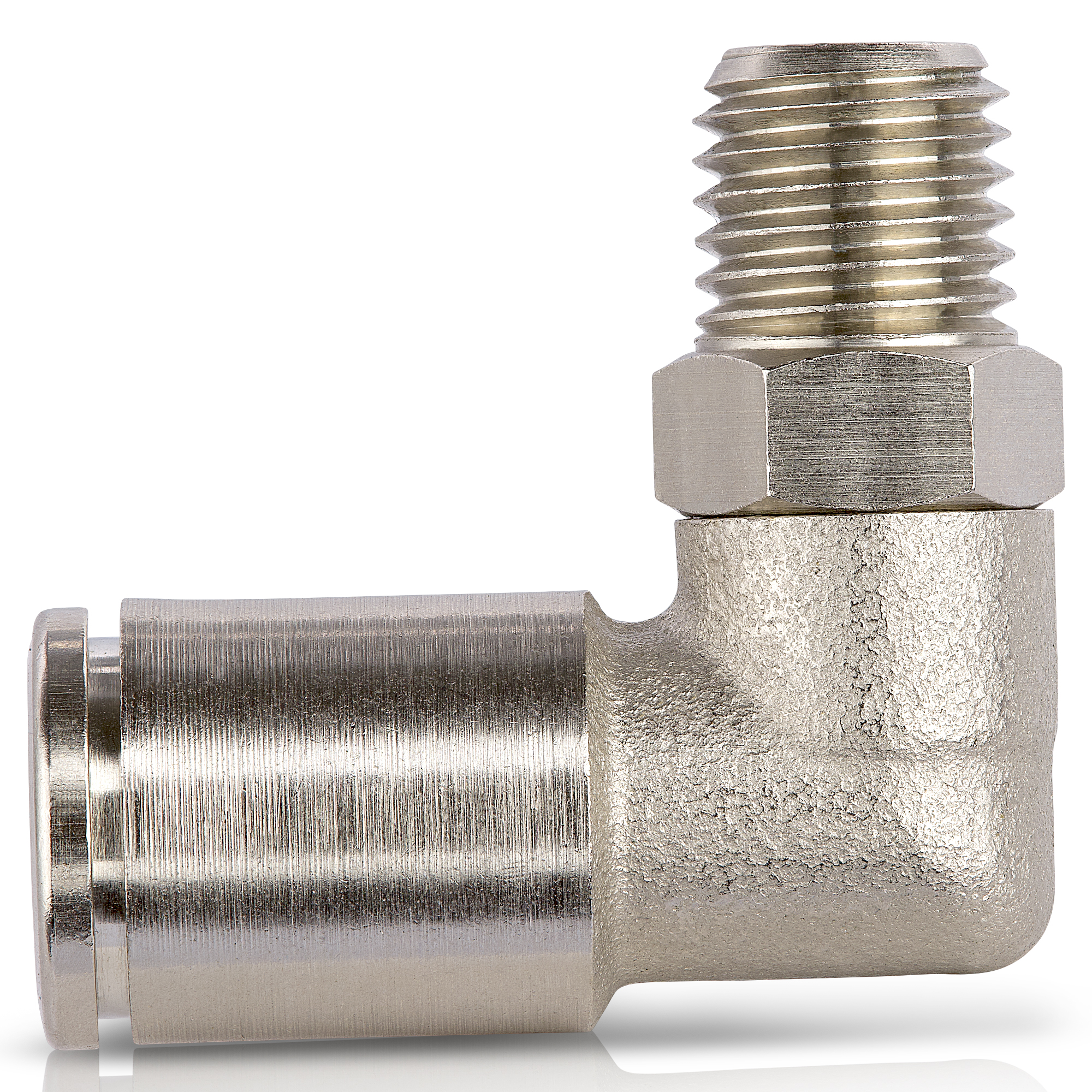

Tube connectors with non-return valve - 4mm
Product number:
134-001-200

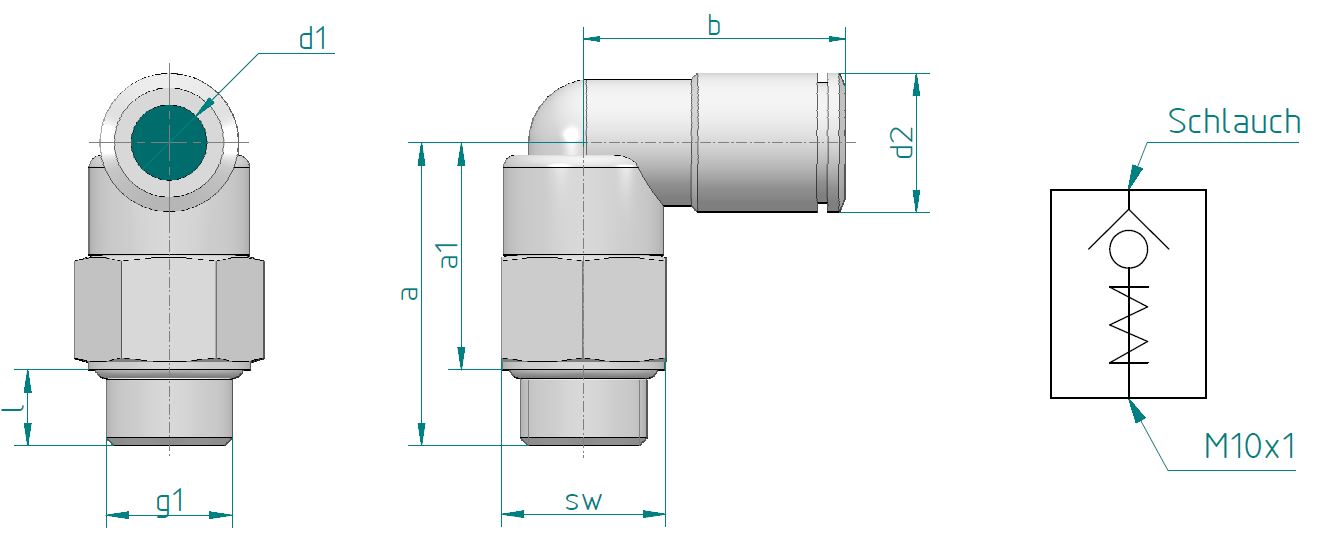

| d1 | g1 | d2 | a | a1 | b | l | sw | part-no. |
| 4 | M10x1 | 9 | 24 | 18 | 20 | 5,5 | 13 | 134-001-200 |
| 6 | M10x1 | 11 | 24 | 18 | 20,5 | 5,5 | 13 | 134-001-201 |
| 8 | M10x1 | 13 | 25 | 19 | 23,5 | 5,5 | 13 | 134-001-202 |
-
